Capture Hub

Using the Capture Hub

The Capture Hub is where you manage the reality-capture data collected for your project: 360° photos, point clouds, and the floorplans they're tied to. It sits under Reality Capture in the left-side menu, alongside Live Operations. Captures managed here feed directly into 3D Views and Progress Tracking — and once a point cloud is calibrated, it's also where you launch the BIM vs Reality split-screen comparison.

1. Accessing the Capture Hub

1. Navigate to Capture Hub:

• In the left-side menu, under Reality Capture, click Capture Hub.

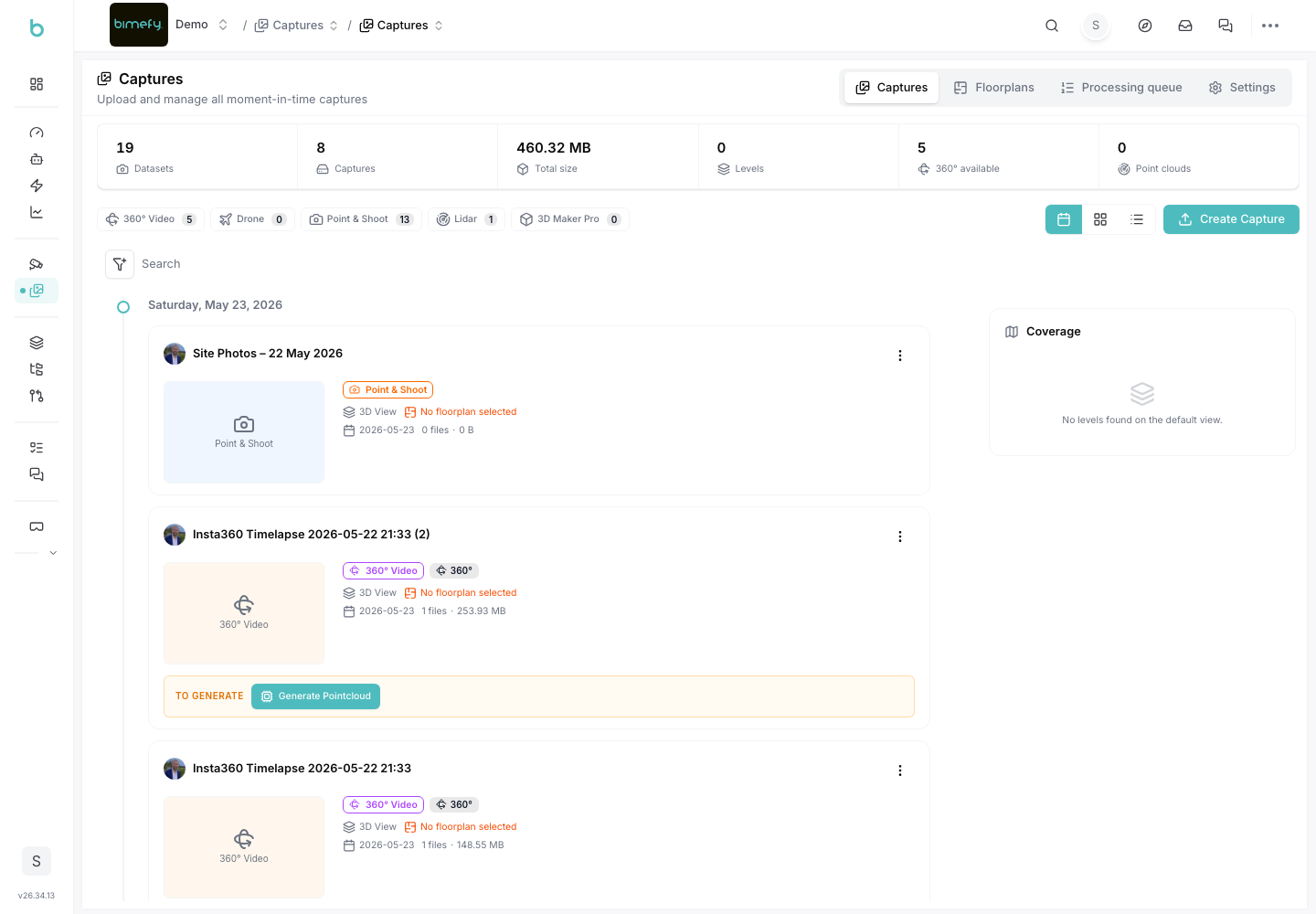

2. Captures Tab

• Browse all captured data (360° photos, point clouds) collected for the project.

3. Floorplan Tab

• View captures organized by building level/floorplan.
• Drill into a specific level to see the captures recorded there.

4. Processing Queue Tab

• Track the status of captures that are still being processed (e.g., point-cloud stitching), so you know when new data will be ready to view.

5. Settings Tab

• Configure capture-related settings for the project.

6. Best Practices

• Capture Consistently: recapture the same locations on a regular cadence so progress comparisons stay meaningful.
• Check the Processing Queue: before assuming a capture is missing, check whether it's still processing.
• Organize by Floorplan: use the Floorplan tab to keep captures aligned to the right building level, especially on multi-story projects.
